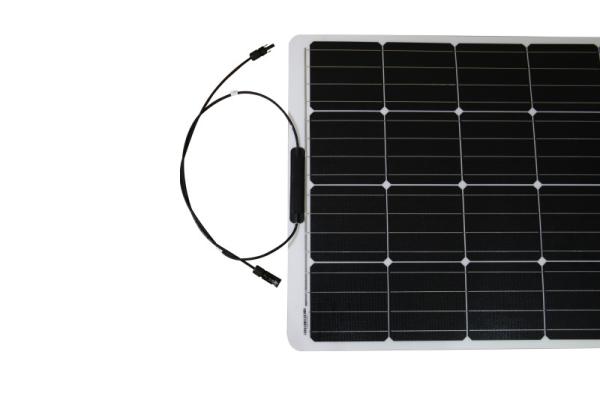

Thin Film 160 Watt Lamination ETFE Flexible Solar Panel
Features:
Grade A solar cells and thin film ETFE lamination ensure a high efficiency and the most reliable quality.
Monocrystalin cells with up to 17.7% efficiency.
The laminating material that we use is Anti-Seawater-Corrosion, and especially suitable for building Marine Solar Panels; for use on seacraft – boats, yachts, etc.
The Solarfam Flexible Solar Panels provide a certain versatility that just cannot be achieved by Glass Solar Panels. Their lightweight and flexible characteristics provide seamless integration onto your vehicle.
Seacraft: Boats, Yachts, Cruisers, and houseboats.
Land Vehicles: Caravans, RVs, Motorhomes, Trailers, 4×4, etc.
Aluminum Semi-Flexible Solar Panel ,PET Laminated Semi-Flexible Solar Panel
Assembled from an Aluminum Back Sheet and PET laminated Solar Cells.
Specification:
Model | SZ-160-36MFE |
Nominal Power | 160W |
Cell type | Moncrystalline |
Number of cells in series | 36 |
Maximum Power current(Imp) | 8.79A |
Maximum Power Voltage(Vmp) | 18.2V |
Open-circuit Voltage(Voc) | 21.5V |
Short-circuit Current(Isc) | 9.31A |
Dimension | 670*1510*3mm |
Weight | 6.2kg |
Output tolerance | +3% |
Product warranty | 5 years |
Smallest packaging unit | 1 panel individual |
|
|
