| Brand Name : | OEM |
| Model Number : | |
| Certification : | ISO9001, CE, SGS |
| Price : | Negotiation |
| Supply Ability : | 10000PCS |
| Delivery Time : | 10-15 working days |
| Payment Terms : | T/T, L/C, T/T, Western Union |

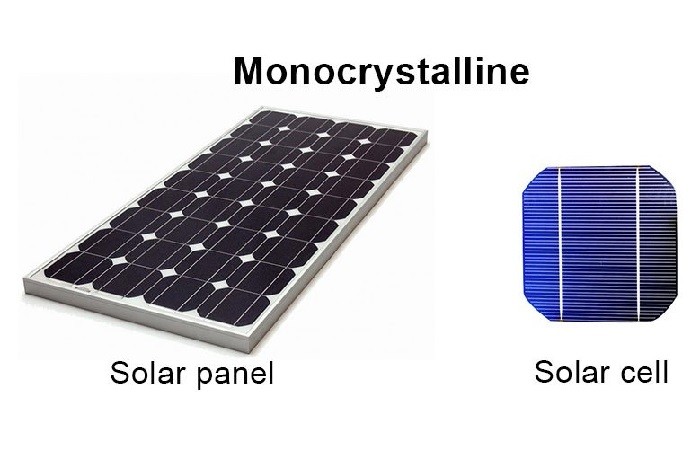

Detailed Specification: 100W Mono Solar Panels
1. Peak Power(Pmpp): 100W
2. Max Power Voltage (Vmpp):17.8V
3. Max Power Current (Impp): 5.55A
4. Max system voltage (V): 1000 VDC
5. Output connector: alligator clip,cigarette lighter,mc4
6. Operating Temperature: -40°C to +85°C
7. Cells: 4*9,
8. Power allowance: ±3%
9. Dimension: 1000*670*30mm
10. Weight: 8.5kg
Mechanical Data
| Cell type | Mono156mm*114mm | ||||||
| No.of cells | 36 in series(4*9) | ||||||
| Dimensions | 1100*670*30mm | ||||||
| Weight | 7kg |
Electrical Data
| Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5) | |||||||
| Power | 80WM | 90WM | 100WM | ||||
| Open circuit voltage(Voc) | 21.5V | 21.5v | 21.6V | ||||
| Max. power voltage(Vmp) | 17.46V | 17.48V | 17.5V | ||||
| Short circuit current(Isc) | 4.78A | 5.4A | 5.99A | ||||
| Max. power current(Imp) | 4.4A | 5.1A | 5.55A | ||||
| Maximum System Voltage | DC1000V | |||||||||
| Temperature Coefficient of Voc | -0.27%/°C | |||||||||
| Temperature Coefficient of Isc | +0.045%/°C | |||||||||
| Temperaturecoefficient of Pmax | -0.408%/°C | |||||||||
| Maximum Series Fuse Rating | 15A | |||||||||
| Junction Box | Ip67 rated/with 6 bypass diodes | |||||||||
| Cable | 4.0mm2 (0.006inches2,symmetrical lengths(-)1100mm(43.30inches)and(+)1100mm(43.30inches)) | |||||||||
| Tempered Glass | 3.2mm(0.13inches)tempered glass | |||||||||
| Cell Encapsulation | EVA(Ethylene-vinyl-Acetate) | |||||||||
| Back Sheet | composite film | |||||||||
| Frame | Anodized aluminum alloy | |||||||||
| Dimension | 1957*992*50mm(77.05*39.06*1.97inches) | |||||||||
| Maximum Surface Load Capacity | 5400pa | |||||||||
| Hail | maximun diameter of 25mm with impact speed of 23m-s-1 | |||||||||
| Temperature Range | -40°C to + 85°C | |||||||||
| Weight | 23.0kg(50.7bs) | |||||||||
|
|
