Waterproof 305w 310w 315w Monocrystalline Solar Panel
Product Description
Moduel | TS-60-305M | TS-60-310M | TS-60-315M |
Maximum Power at STC (Pmax) | 305W | 310W | 315W |
Optimum Operating Voltage (Vmp) | 32.8 V | 33.1 V | 33.4 V |
Optimum Operating Current (Imp) | 9.30 A | 9.37 A | 9.43 A |
Open Circuit Voltage(Voc) | 39.8 V | 40.2 V | 40.6 V |
Short Circuit Current(Isc) | 9.80 A | 9.87 A | 9.92 A |
Module Efficiency | 18.6% | 18.9% | 19.2% |
Operating Module Temperature | -40 °C to +85 °C | ||
Maximum System Voltage | 1000/1500 V DC (IEC) | ||
Maximum Series Fuse Rating | 20 A | ||
Power Tolerance | 0~+5W | ||
Standard Test Condition(STC) | lrradiance 1000 W/m 2 , module temperature 25 °C, AM=1.5;Tolerances of Pmax, Voc and Isc are all within +/- 5%. | ||

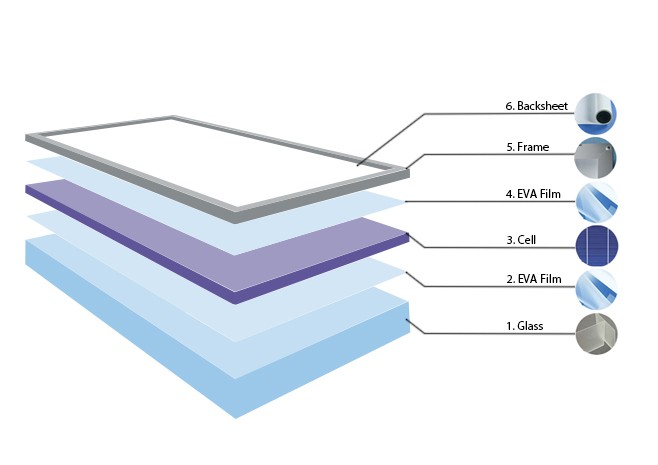

Frame
◆ Silver or black frames are optional
◆ Boost bearing capability and prolong service life
◆ Serrated-clip design tensile strength
Glass
◆ Antireflective glass
◆ Translucency of normal luminance is increased by 2%
◆Self-cleaning function
◆ Module efficiency is increased by 2%
Junction Box
◆ IP67 Waterproof level
◆ Quality diode ensures module running safety
◆ Excellent heat dissipation performance
◆ Long service life
Product Line
Solar Cell Sorting
|
|
