    110W Semi Flexible Solar Panels

    Ask Lasest Price
    Brand Name : OEM
    Model Number :
    Price : Negotiation
    Certification : ISO9001, CE, SGS
    Delivery Time : 10-15 working days
    Payment Terms : T/T, L/C, T/T, Western Union
    Supply Ability : 10000PCS
    • Product Details
    • Company Profile

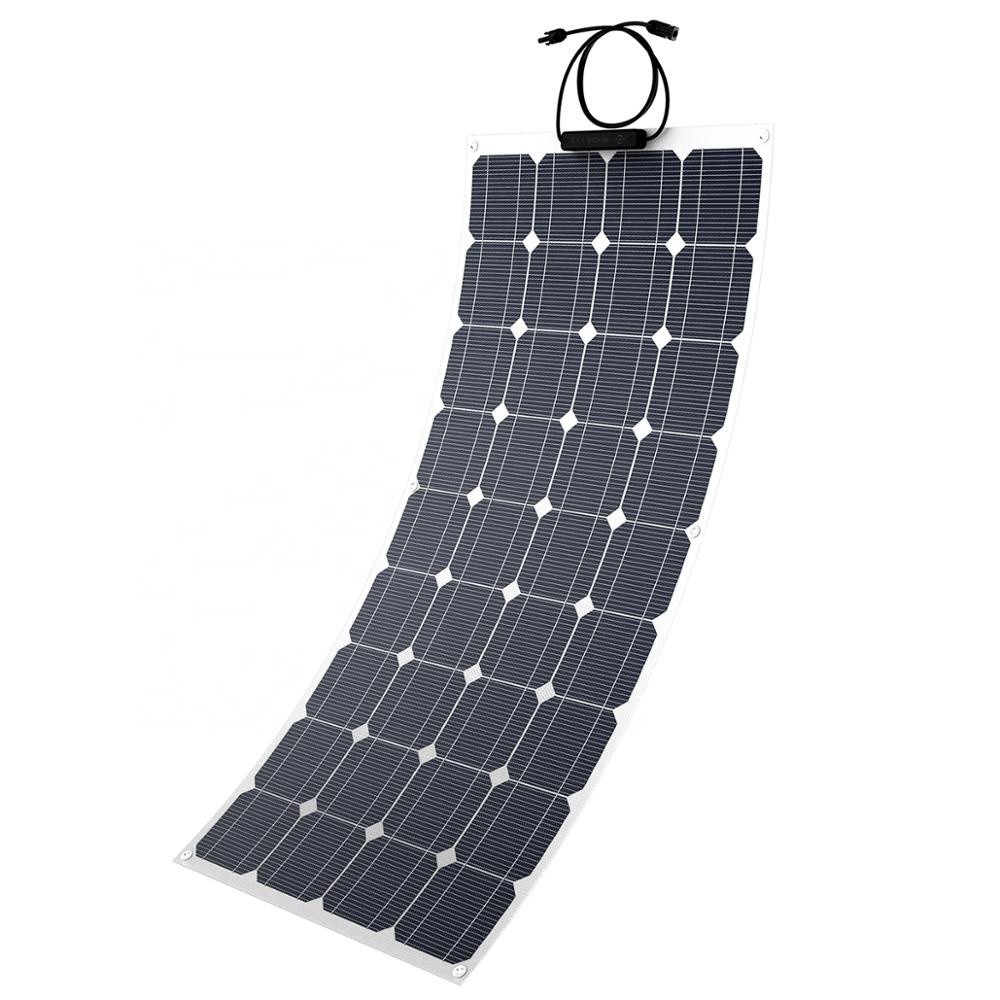

    110W Semi Flexible Solar Panels

    12 volt eftf solar panel flexible laminated 100w semi flexible solar panel
    Product Description
    This 110W semi flexible solar panel can be widely used on yacht, boat, RV roof and so on. Our 2nd generation newest product main advantage is higher efficient in producing power, more light in weight and more water proof and durable in long use.
    Main Features:

    Semi flexible : bending angle up to about 30 degrees

    • Durable with aluminum backsheet or fiberglass backsheet, no glass

    • Light weight for easy carry.

    • The thickness only 2.5mm, easy joint to your yacht or RV roof.

    • EVA, solar cell , oxidation resistance PCB or aluminium sheet laminated with more waterproof and aniti aging , long life.

    Product Paramenters
    Mechanical Data:
    1). Flexible Angle : up to 20 degree
    2). Back Sheet: aluminum or fiberglass (PCB)
    3). J-Box: IP 67 rated
    4). Thickness of ETFE: 0.025mm
    5).Thickness of solar panel: 2 5mm or 3mm
    6).Cables/Connector: 0 9meters, 2*2.5mm2 cable with MC4 connectors
    7). Type of Solar Cells: 156 Monocrystalline silicon cells.
    8). Eyelets: 4pcs in the corners
    9). By pass diode: 2pcs (10A for each )
    Key Wordssemi flexible solar panel
    OS110-18MFX110W
    Vmp18V
    Cell Efficiency18.5%-20%
    Size1070*670*2.5mm
    Isc6.7A
    Imp6.1A
    Voc21.24
    Number of cells36pcs
    Details Images
    110W Semi Flexible Solar Panels
    110W Semi Flexible Solar Panels
