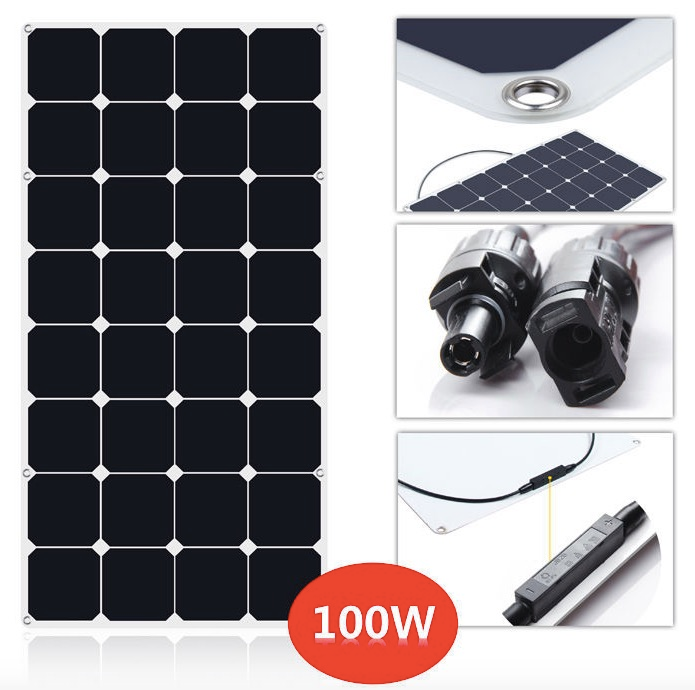

Ultra Thin Flexible Solar Panels
Product details
Solar cell | 125*125 mm USA Sunpower solar cells |
Color | Deep Blue |
Backsheet | Double-Sided TPT |
EVA | excellent anti-aging resistance |
Junction Box | General international standard IP65 |
Solar Cell efficiency | 21.3~23% |
Product name | Flexible Solar Panels |
Keyword | 120w flexible solar panel |
Item Type | 120w flexible solar panel |
Cell size(mm): | 125*125mm USA Sunpower Solar cell |
Power tolerance: | ±3% |
Peak power(WP): | 120w |
Voltage at Pmax(Vmp): | 22.1V |
Current at Pmax(Imp): | 5.43A |
Open circuit voltage(Voc): | 26.5V |
Short circuit current(Isc): | 5.85A |
Max system voltage(VDC): | 600V |
Operating Temperature: | -40℃ to + 85℃ |
Cell Efficiency: | 22.50% |
Temperature Coefficient of Pmax: | -0.48%/℃ |
Temperature Coefficient of voc: | -0.34%/℃ |
Temperature Coefficient of ISC: | 0.015%/℃ |
Nominal Operating Cell Temperature: | 45+/-2℃ |
Data under standard testing conditions(STC) | 1000W/M²; 1.5AM |
Type of Connector: | MC4 with cable length 900mm |
Dimension(mm): | 1315*540*3MM |
Power (W) | Vmp(V) | Imp(A) | Net Weight | Power (W) | Vmp(V) | Imp(A) | Net Weight | |
20W | 19.8V | 1.01A | 0.3kg | 130W | 22.50V | 5.77A | 2.5kg | |
30W | 17.0V | 1.76A | 0.7kg | 140W | 24.60V | 5.69A | 2.6kg | |
40W | 19.8V | 2.02A | 0.9kg | 150W | 26.80V | 5.60A | 2.7kg | |
50W | 17.6V | 2.84A | 1.2kg | 160W | 28.00V | 5.71A | 2.8kg | |
70W | 18.2V | 3.71A | 1.5kg | 200W | 34.00V | 5.88A | 3.0kg | |
80W | 20.0V | 4.00A | 1.6kg | 215W | 37.00V | 5.81A | 3.3kg | |
100W | 17.7V | 5.70A | 1.9kg | 235W | 39.6V | 5.93A | 3.8kg | |
110W | 18.2V | 6.04A | 1.9kg | 260W | 46.20V | 5.63A | 4.0kg | |
115W | 19.8V | 5.80A | 2.3kg | 270W | 46.20V | 5.84A | 4.0kg | |
120W | 20.5V | 5.85A | 2.3kg | 280W | 46.20V | 6.06A | 4.0kg |
Advantages

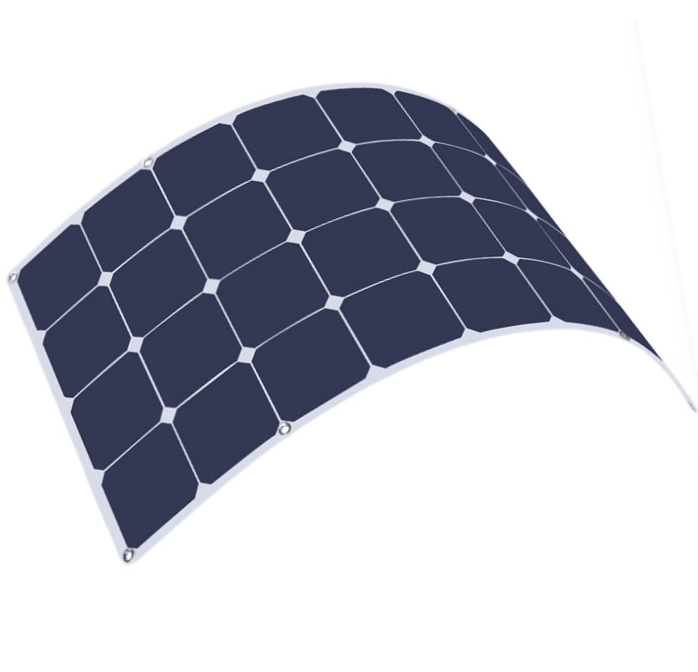

Semi flexible
can be bending angle up to 30-40 degrees
Lightweight
So easy carrying easy shipment easy installation
Super Thin
thickness only 3mm, easy joint to your yacht or RV roof , boat etc
High efficiency
High efficiency back-contact
mono USA cell up to 23%

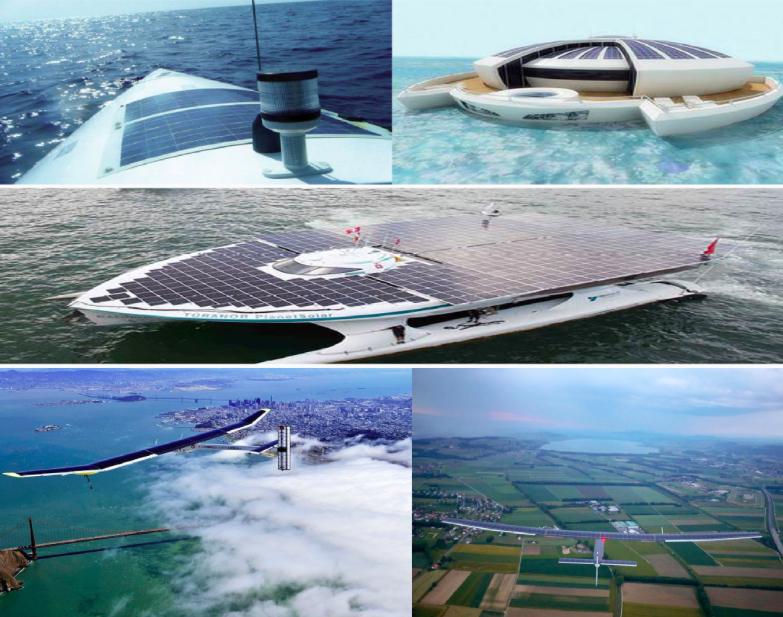

Widely Applications
Perfect wide use applications : Golf-cart , Yacht , boat , caravan , electric car , travel tourism car , patrol car , roof , camping, roof power generations , tent , portable bag , backpacks , portable generator kits ,lightweight roof solar system etc .
It is perfect for outdoor permanent use to provide free electricity charging 12V batteries to power various electronic devices, such as in a motorhome, caravan, camper, boat, or for solar lighting systems, off-grid and back up solar power systems, and complete household solar power systems.
|
|
