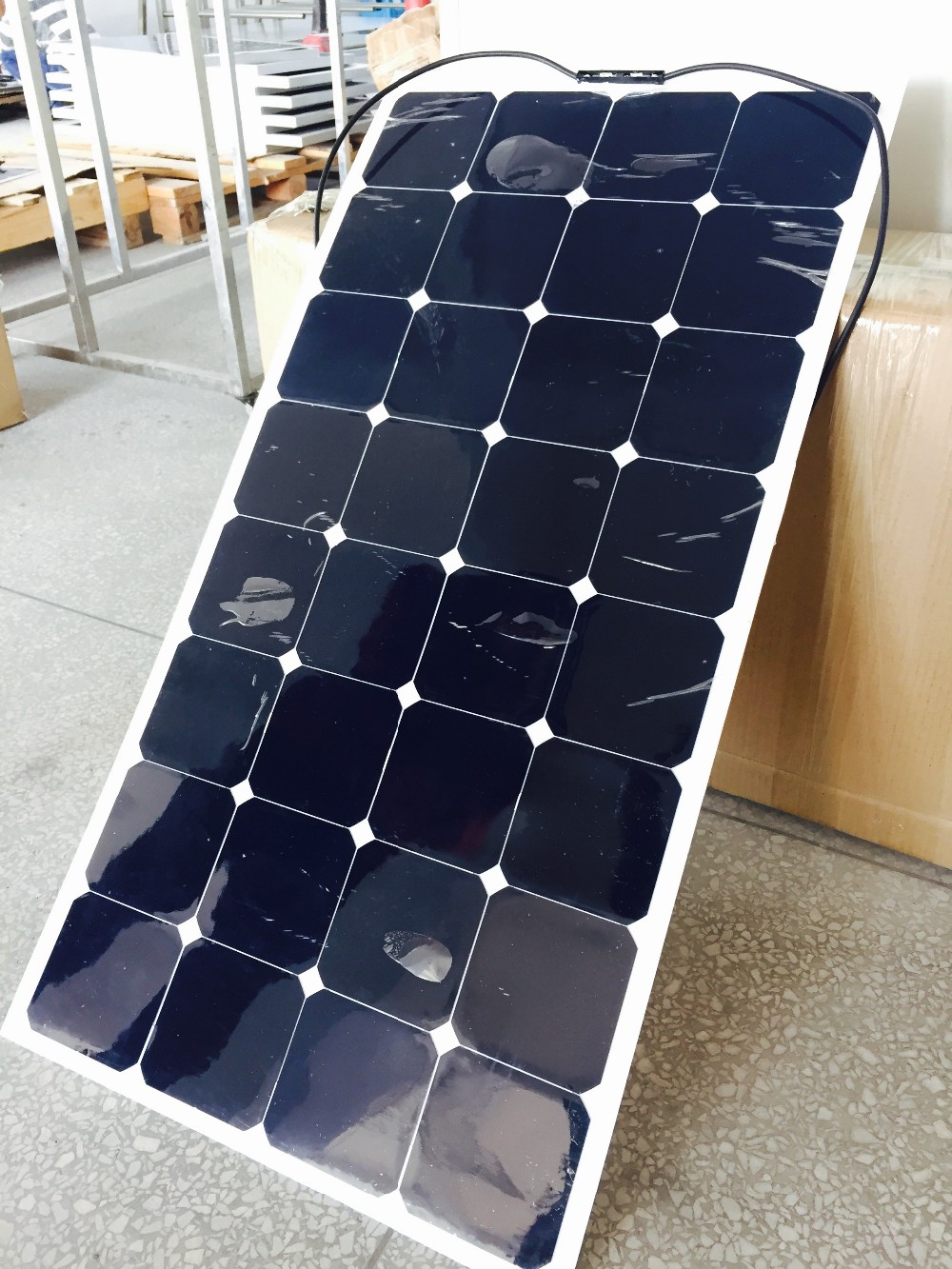

High Efficiency 100W Semi Flexible Bendable Solar Panel
| Product Name | Semi Flexible Solar Panels | Voltage | 18 V |
| Wattage | 100 | Features | Cables&MC4 Connectors On back of Solar Panel, 25 year power warranty, Flexible, Portable |
| Material | Sun Power | Application | Camping/Hiking |
| Size | 1050mm*540mm*3mm | Type | Solar Panel |
| Cell efficiency | 0.213 | Junction Box | IP65 Waterproof |
Package List :
1, Flexible solar panel 100w 18v, 1050*540*3mm ,1pcs
2, Cables&MC4 Connectors On back of Solar Panel or on front of the panel, pls decide and let us know!!!
Technical Specification:
High efficiency bendable solar module adopts the highest efficiency
cell with efficiency up to 20% or higher,which enable 25-30% higher
power generation than the conventional PV modules at the same size.
By adopting the back contact technique,the cell can be coated with
the flexible materials and finally forms the high efficiency
flexible solar panel.
This kind of solar panel can be widely used in the field of
Electric Golf Car,Patrol Car,Travel Tourism Car,Yacht,Roof Power
generation,Backpack,Tent and so on.
Technical Specification
| Maximum power voltage | 18.0±0.3V |
| Maximum power current | 5.8A |
| Open circuit voltage V | 21.28V |
| Short circuit current A | 6.5A |
| Size of module (wide and high) | 1050mm*540mm*3mm |
| Number of cells | 32PCS |
| Size of cells(wide and high) | 125mm*125mm |
| Weight per piece kg | 1.8KG |
| Temperature coefficient of Isc | ±0.05%°C |
| Temperature coefficient of Voc | -0.33%°C |
| Temperature coefficient of power ) | -0.23%°C |
| NOCT(nominal operating cell temperature) | 45°C(±°C) |
|
|
