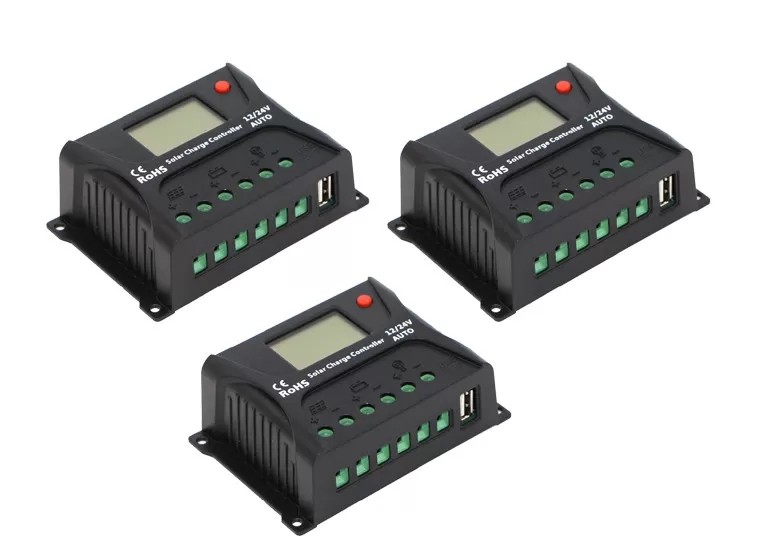

12V 60A PWM Solar Charge Controller For Lithium Batteries
Feature
1. Clock timing function.
2. Built-in two 5V 2A/1A USB interfaces.
3. Extreme Low Power Consumption.
4. Built-in IR self-learning infrared remote control to turn the DC
loads on and off.
5. LCD Display with backlight.
6. Adjustable charging voltage(Low:14.2V,Default:14.5V,High:15.2V).
7. Light control mode,Time control mode.
8. Reverse protection,short circuit protection.
9. Designed for 12V/24V solar power system.
10. Hanging style design makes it convenient to install.
11. Available in 10A/20A/30A/40A.
12. Simple options,automatic memory retention of users' settings.
13. Five protection to ensure the safe, including charging over
voltage / charging flow / over-current / load load short circuit /
under-voltageprotection.
Parameter
Model | HP2450 | HP2460 |
Rated current | 50A | 60A |
System voltage | Automatic recognition of 12V/24V | |
Rated power | 12V/750W | 12V/900W |
24V/1500W | 24V/1800W | |
No-load loss | < 13mA/12V;< 15mA/24V | |
Max. Solar energy input voltage | <55 | |
Max. voltage at the battery end | <34V | |
Overvoltage protection | 16.0V | |
Charging recovery voltage | 13.2V | |
Over-discharge recovery voltage | 12.5V(settable with the keys) | |
Over-discharge voltage | 11.0V(settable with the keys) | |
Boost charging time | 2H | |
Temperature compensation | -3.0mV/℃/2V | |
Light control voltage | Light control on 5V, light control off 6 V (light control on plus 1 V) | |
Light control judgment time | 10 minutes | |
USB function | NO | |
Operating temperature | -25℃~+55℃ | |
IP protection degree | IP30 | |
Net weigh | 650g | |
Protection functions | attery reverse connection protection, solar panel reverse connection protection Notice 1, reverse charging protection at night ,Charging overload protection, overcurrent protection , short circuit protection | |
Dimensions | 189.27×127.2×54.0 (mm) | |
|
|
