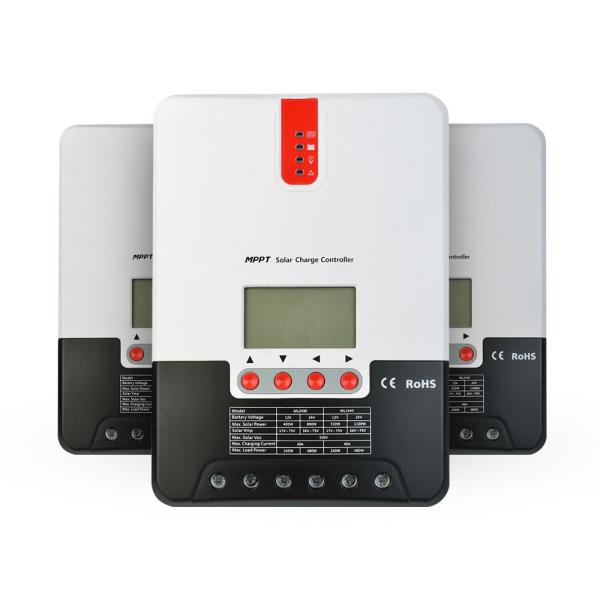

800W 1100W 12V 24V 10A 20A MPPT Solar Charge Controller

Product Description

Parameter	Value
Model	ML2420	ML2430	ML2440	ML4830	ML4860
System Voltage	12/24V			12V/24V/36V/48V
No-load loss	0.7W-1.2W
Battery Voltage	9V-35V			9V-70V
Max.Solar Input Voltage	100V(25℃) 90V(-25℃)			150V(25℃) 145V(-25℃)
MPPT Range	Battery Voltage+2V~75V			Battery Voltage+2V~120V
Rated Charging Current	20A	30A	40A	30A	60A
Rated Load Current	20A
Max. Capacitive Load Capacity	10000uF
Max PV Input Power	520W	800W	1100W	1600W	3200W
Conversion efficiency	≤98%
MPPT Tracking efficiency	>99%
Temp Compensation Coefficient	-3mv/℃/2V
Working Temperature	-35℃~+45℃
Waterproof Level	IP32
Weight	1.4Kg	2Kg	2Kg	2.3Kg	3.6Kg
Communication Port	RS232			RS485,RS232
Altitude	≤3000m

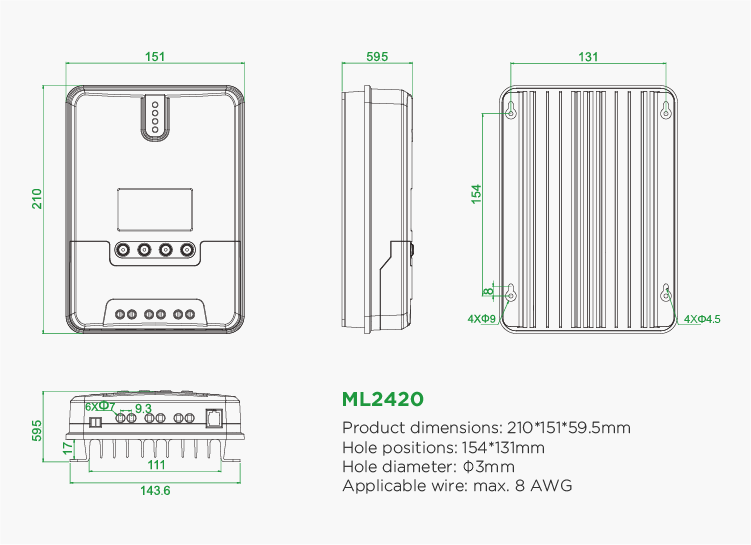

Product Dimensions (mm)	210*151*59.5	238*173*72.5		226*182*81	285*205*93

Application

Solar Station System

Solar power station systems are typically used for regional centralized power supply, such as village, island, fields monitoring and so on. Also the power level range is between kilowatts to hundreds kilowatts.

Solar Home System

Solar home system are typically used for home photovoltaic power generation system, to solve electricity demand of none power or unstable power region. Also the power level rage is between hundred watts to kilowatts.

Solar RVs / Vessels System

Solar RVs / Vessels system are typically used for reducing the RVs and the vessels electricity cost, by setting up solar system to assist gasoline/diesel power generator.

Solar Street lights System

Solar Street lights System are typically used for street lightning of cities, villages, the intelligent streetlight system will remote monitoring all street lamps to reduce the operation and maintenance costs of system.

Hybrid Energy System

The Hybrid energy system contains solar, wind, diesel and city electricity energy system. The system will meet the load demand of electricity in villages, islands, and telecom stations to reduce the system cost and improve the replenishment ratio of system.
