Beijing Silk Road Enterprise Management Services Co.,LTD
5 Years
| Ask Lasest Price | |
| Brand Name : | OEM |
| Model Number : | |
| Price : | Negotiation |
| Certification : | ISO9001, CE, SGS |
| Delivery Time : | 10-15 working days |
| Payment Terms : | T/T, L/C, T/T, Western Union |
| Supply Ability : | 10000PCS |

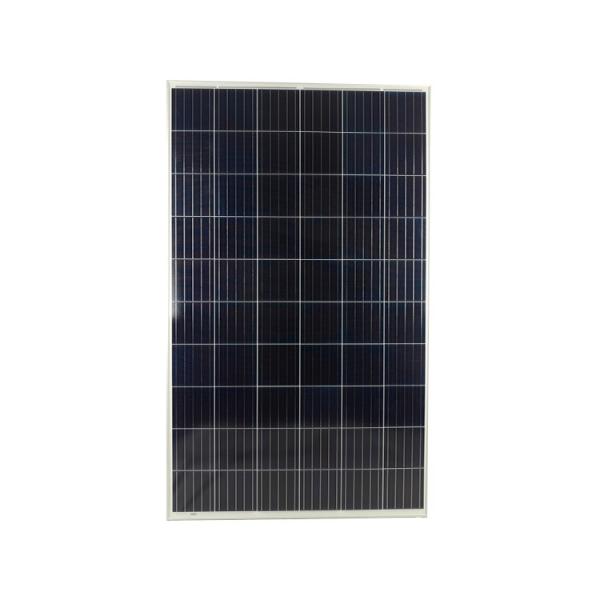

150w 200w 260w 270w 310w 320w polycrystalline photovoltaic solar
panel manufacturers in China
| ELECTRICAL PERFORMANCE | ||||||
| Module type | PLM-260P-60 | |||||
| Power output | W | 250 | 255 | 260 | 265 | 270 |
| Power output tolerances | % | 0-3 | ||||
| Voltage at Pmax | V | 29.95 | 30.29 | 30.63 | 30.96 | 31.22 |
| Current at Pmax | A | 8.35 | 8.42 | 8.49 | 8.56 | 8.65 |
| Open-circuit voltage | V | 37.63 | 37.83 | 37.97 | 38.13 | 38.23 |
| Short-circuit current | A | 8.90 | 8.97 | 9.05 | 9.10 | 9.13 |
| OPERATING CONDITIONS | ||||||
| Max.system voltage | 1000V | |||||
| Limiting reverse current | 15A | |||||
| Operating temperature range; | -40℃ to 85℃ | |||||
| Max.static load front | 5400Pa | |||||
| Max.static load back | 2400Pa | |||||
| Max.hailstone impact (diameter/velocity) | 25mm/23m/s | |||||
| MECHANICAL CHARACTERISTICS | ||||||
| Front cover(material/thickness) | Low-iron tempered glass / 3.2mm | |||||
| Backsheet(color) | white / black | |||||
| Cell(quantity/material/dimensions) | 60 / Polycrystalline silicon / 156*156mm | |||||
| Frame(material/color) | Anodized aluminum alloy / silver | |||||
| Junction box(protection degree) | >= IP67 | |||||
| Cable & Plug connectors | 900mm / 4mm² & MC4 compatitible / IP67 | |||||
| Module Dimensions (L /W /H ) | 1640mm*992mm*40mm | |||||
| Module Weight | 18.3kg | |||||
Humanized design
* More protection with practical and effective design
* Prevent the aluminum frame from scratching the hand
* Using the rain to clean dirt remaining on the solar module
|
|
